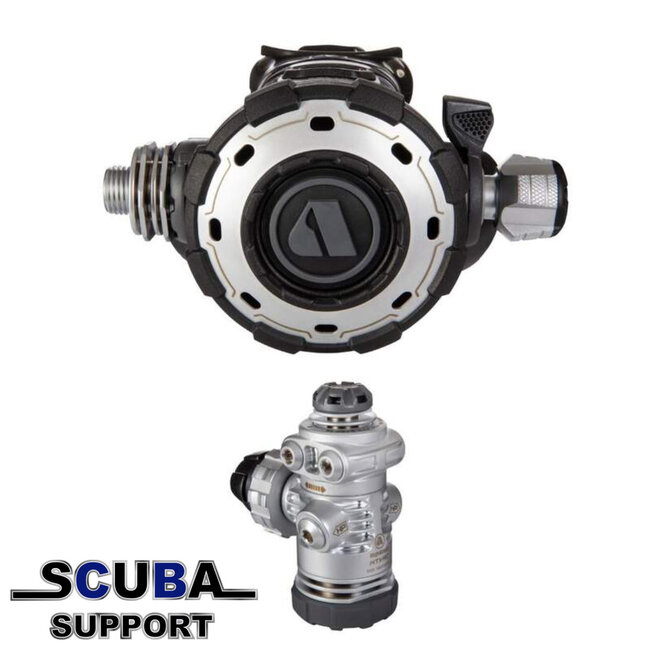

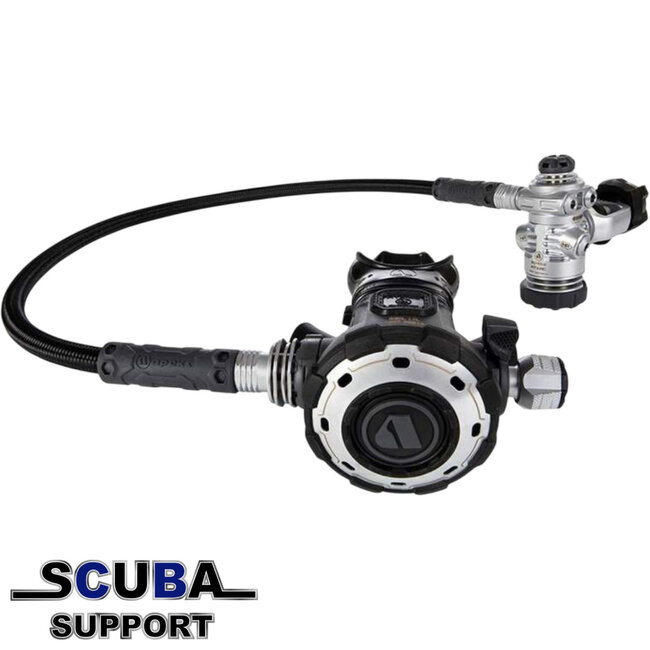

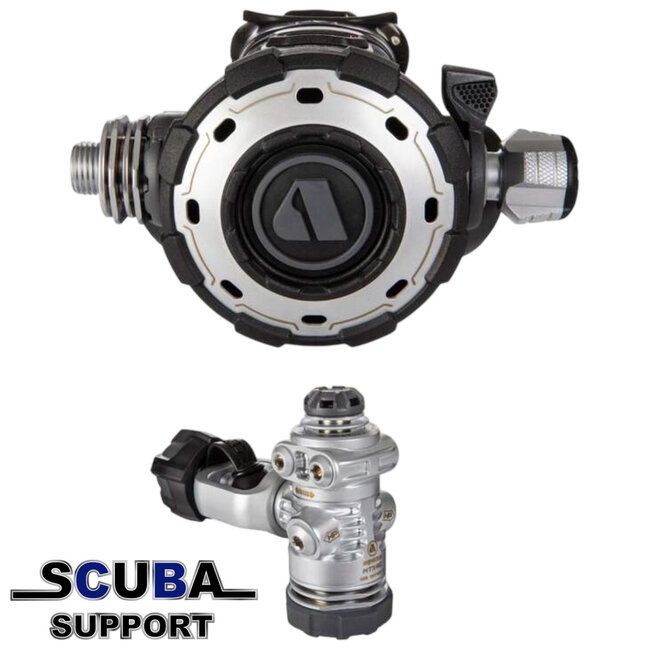

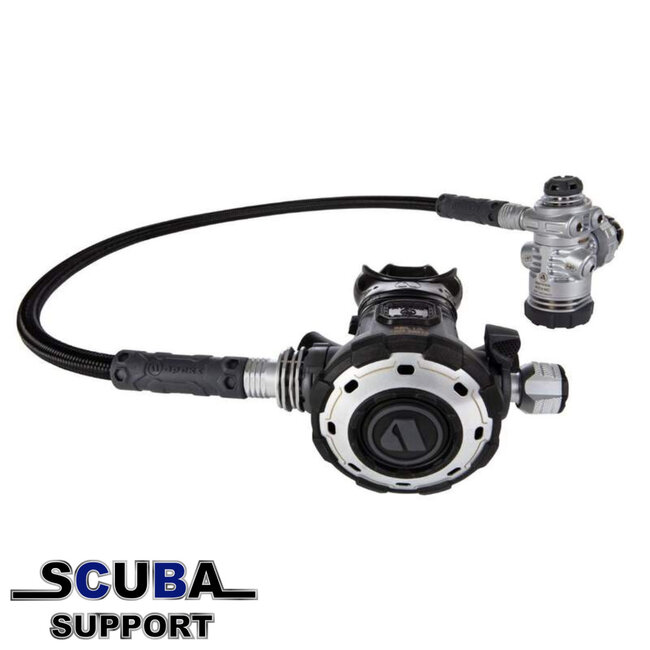

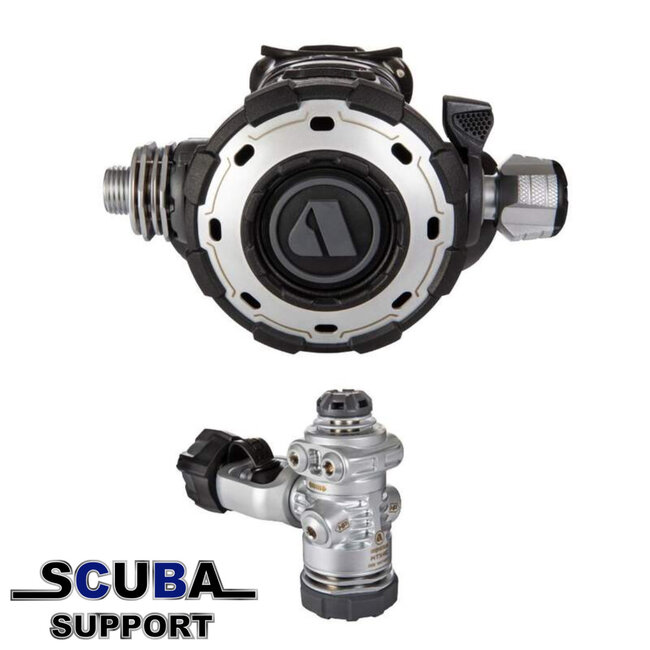

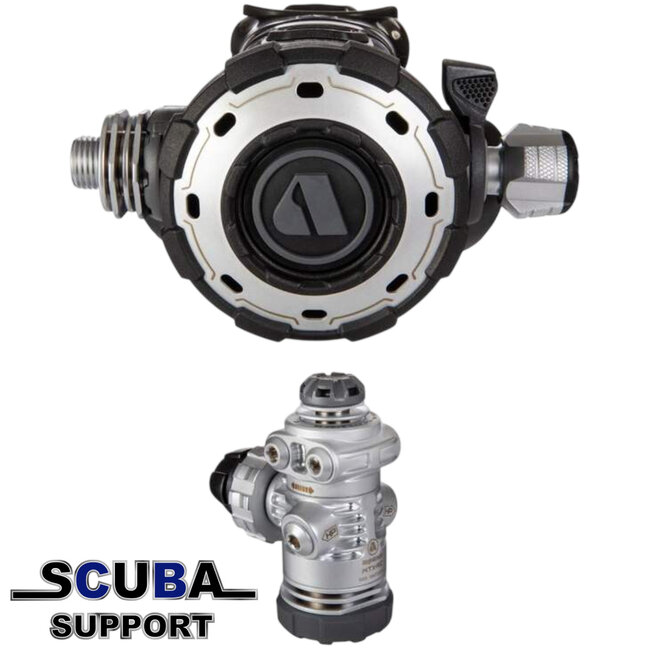

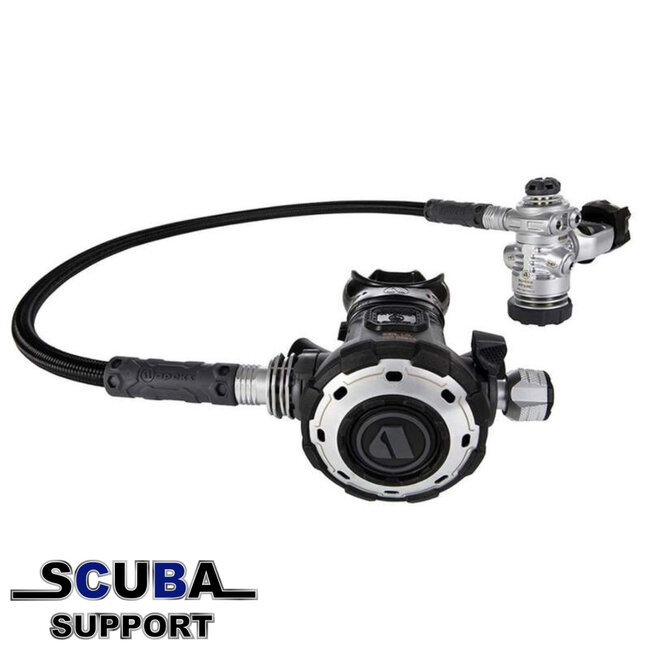

MTX-R Regulator

The MTX-R is based on the MTX regulator, originally developed in accordance with the United States Navy Experimental Dive Unit extreme cold water test. Thanks to further design innovations, the MTX-R delivers reliable performance in near-freezing water at depths exceeding 60 metres — a capability achieved by very few consumer regulators.

An innovative first-stage design helps prevent ice build-up around the diaphragm, making the MTX-R exceptionally reliable, rugged, and expedition-ready, even in the harshest environments.

FEATURES

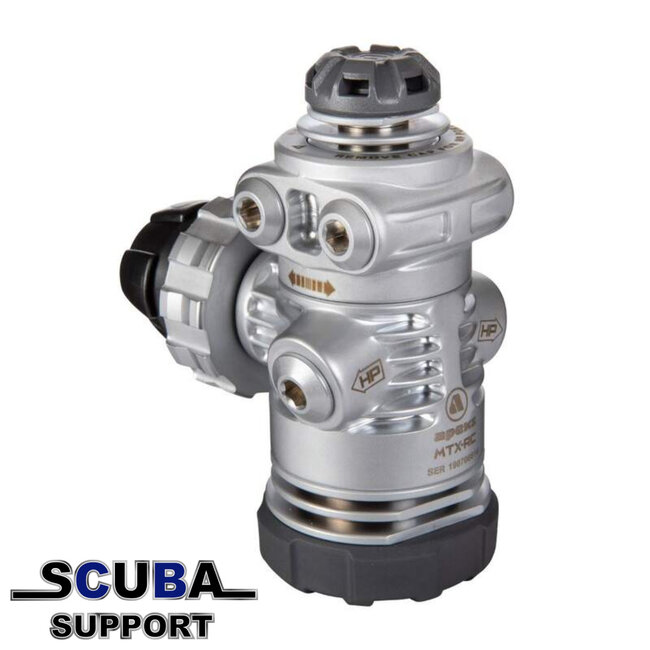

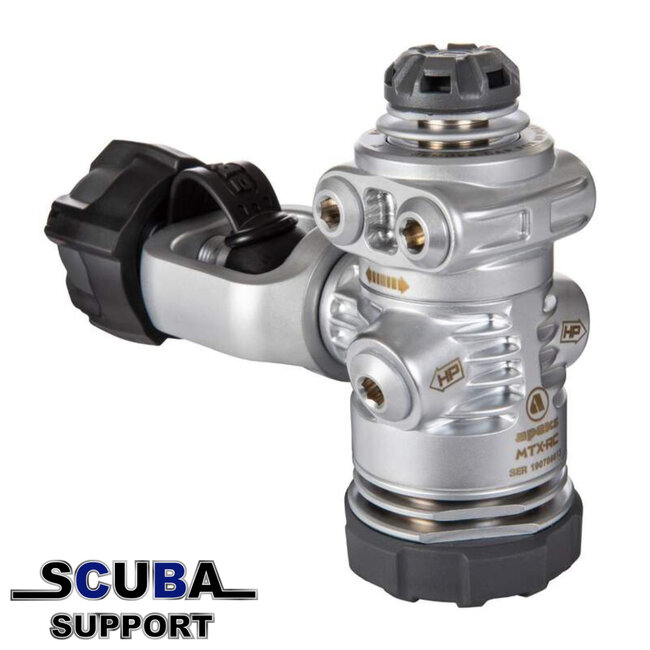

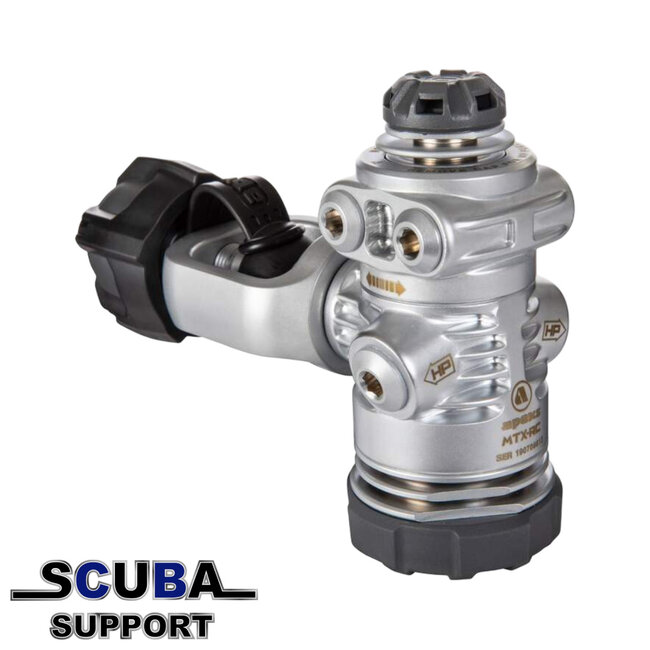

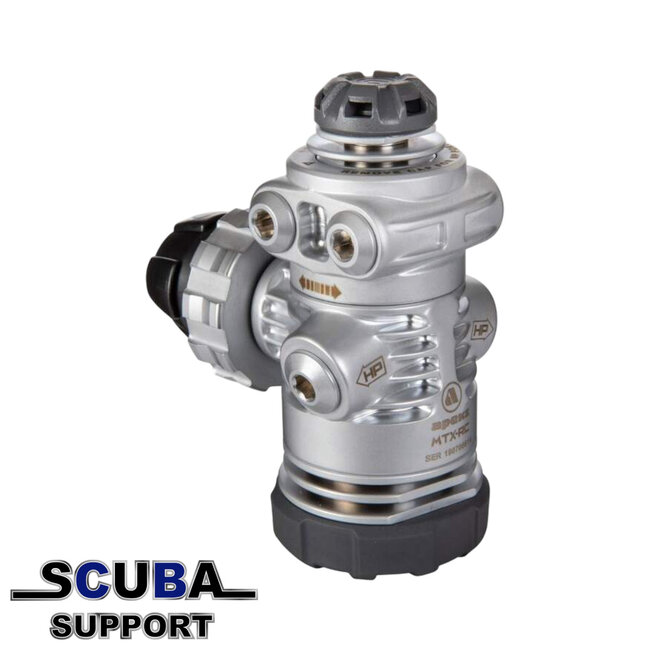

First Stage

• Available in Yoke or DIN configuration

• Suitable for cold water use (below 10°C / 50°F)

• Unique over-balanced diaphragm design: as depth increases, medium pressure rises faster than ambient pressure, ensuring superior performance at depth

• Over-moulded innovative end cap and environmental diaphragm

• Forged first-stage body for maximum thermal performance

• Fifth 3/8" UNF MP port with protective bumper when not in use

• Heat-exchanging ribs for enhanced cold-water performance

• Angled HP ports for optimal hose routing and transmitter fitting

• Forged rotating turret with parallel MP port orientation

• Ribbed diaphragm clamp for improved heat exchange

• Double swivel hose for increased comfort and freedom of movement

• Tested for Octopus use – EN250A cold water

• Nitrox/Oxygen compatible: up to 40% O₂ outside the EU; within the EU, >21% O₂ requires an M26 connection

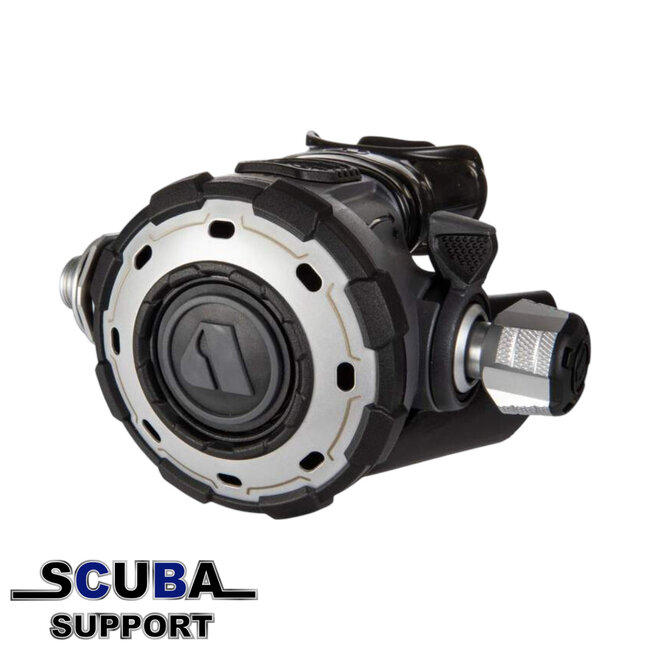

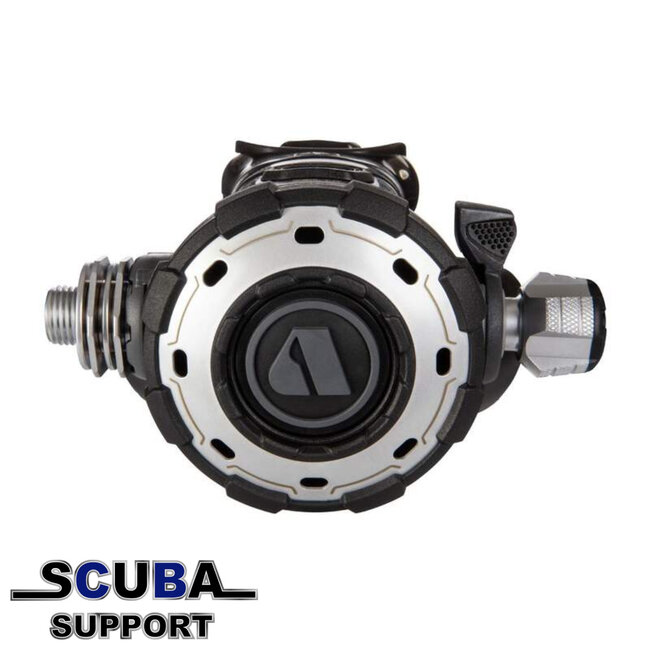

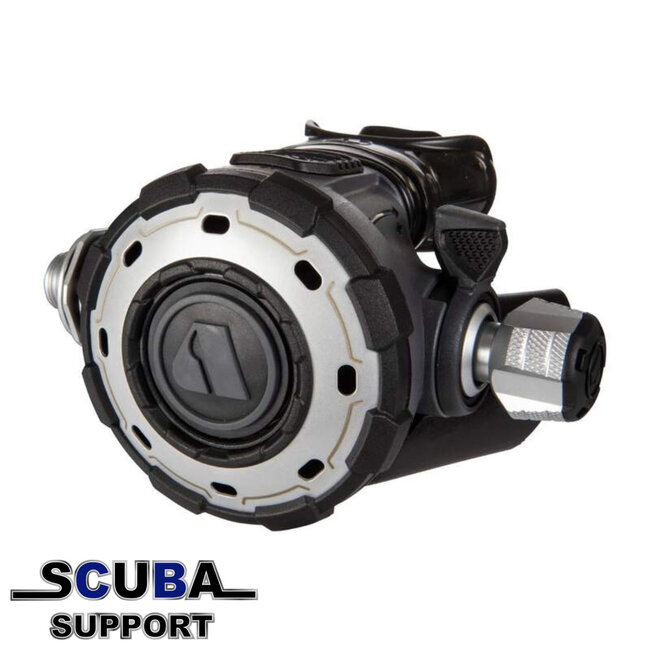

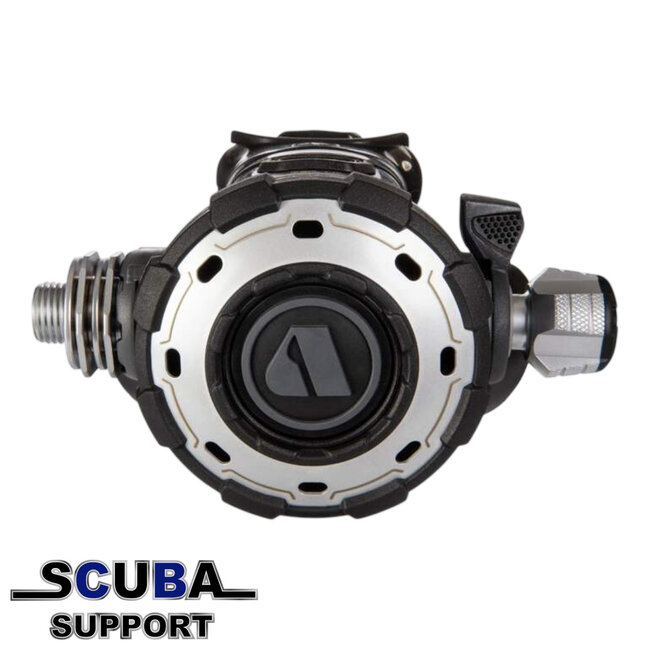

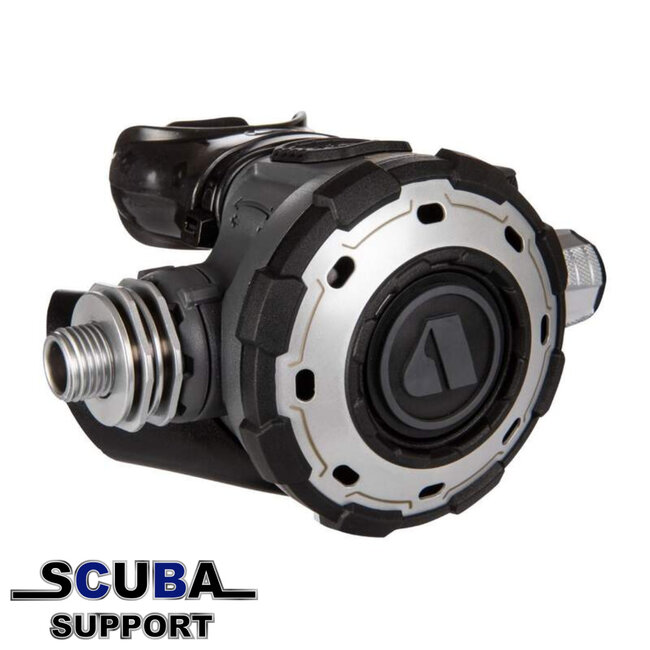

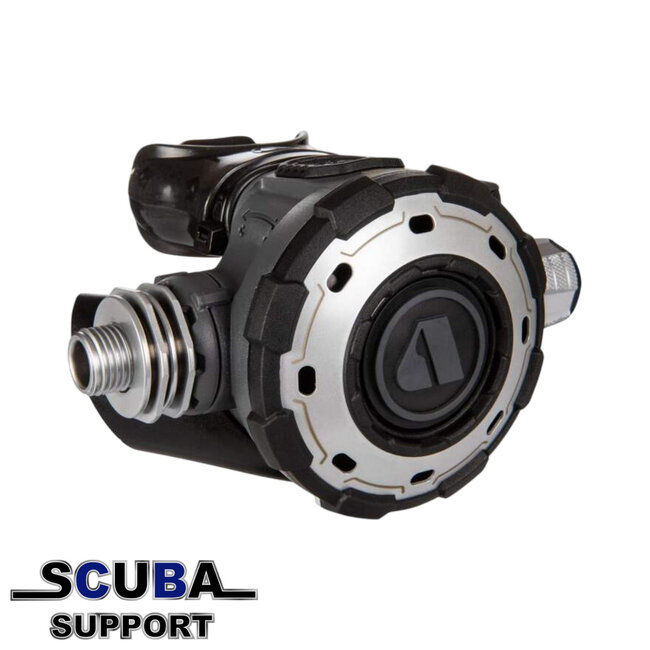

Second Stage

• High-performance, pneumatically balanced, lever-operated poppet valve

• Large, diver-friendly self-flushing purge button

• Front cover with over-moulded elastomer and chrome-plated brass insert for durability

• Protective elastomer bumpers on sides and top

• Reversible configuration for left- or right-hand hose routing

• Patented heat exchanger surrounding the valve mechanism to reduce freezing

• Comfo-bite™ mouthpiece

• Double swivel hose connection

• Flexible braided nylon hose for improved cold-water performance

SPECS (EN)

• Connections: Yoke and DIN

• First Stage Type: Over-balanced diaphragm, environmentally sealed

• Body Type: One-piece forged body

• HP Ports: 2 × 7/16" UNF

• MP Ports: 5 × 3/8" UNF

• Environmental Dry Kit: Standard

• Exterior Finish: Satin chrome

• Orientation: Convertible LH or RH

• Cold Water Use: Yes – extreme

• Second Stage Type: Pneumatically balanced

• Opening Effort Control Knob: No

• Venturi Lever: No

• Mouthpiece: Comfo-bite™

• Exhaust Tee: Diver-changeable (one set supplied)

• Heat Exchanger: Yes

• Hose Type: Braided Flexi-hose

• Nitrox Compatibility: Up to 40% O₂ out of the box / O₂ cleanable to 100%
