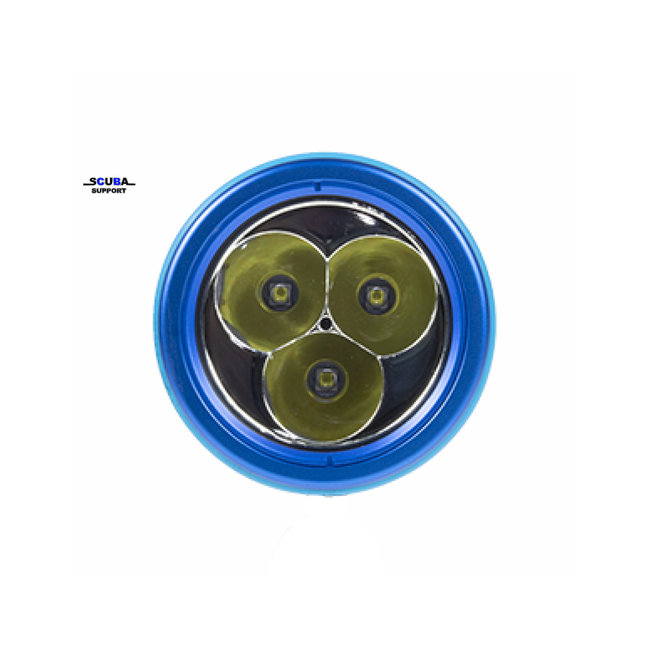

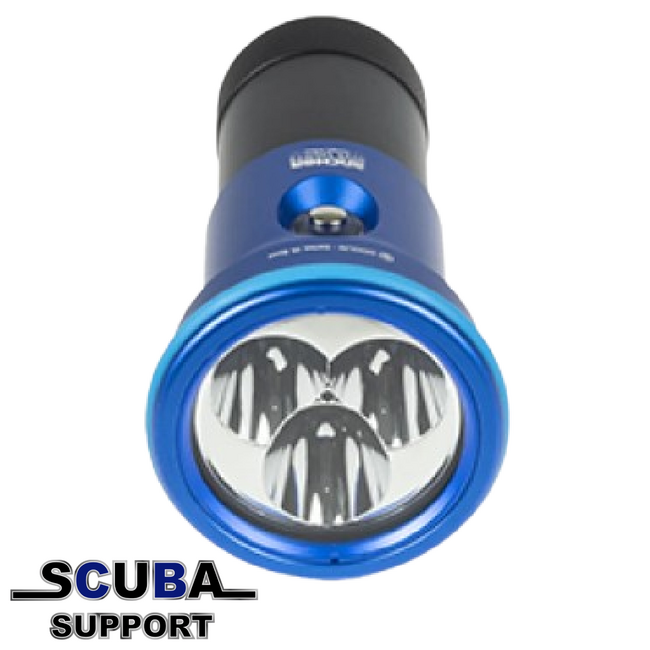

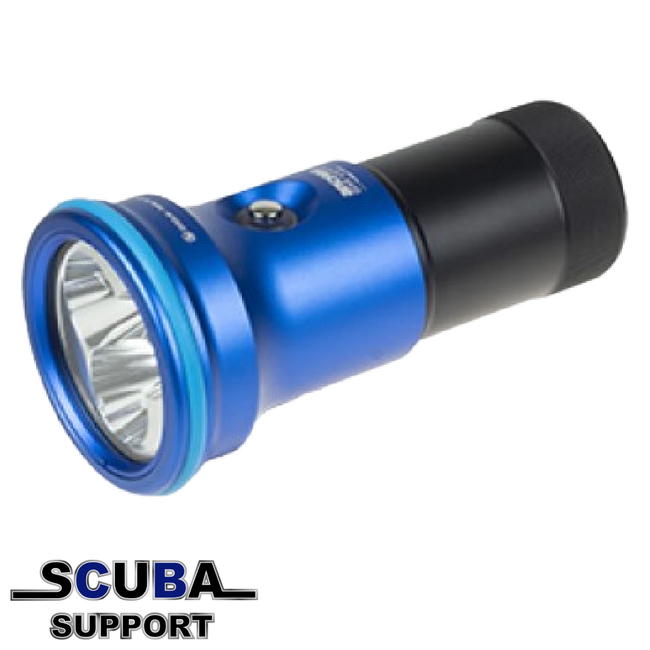

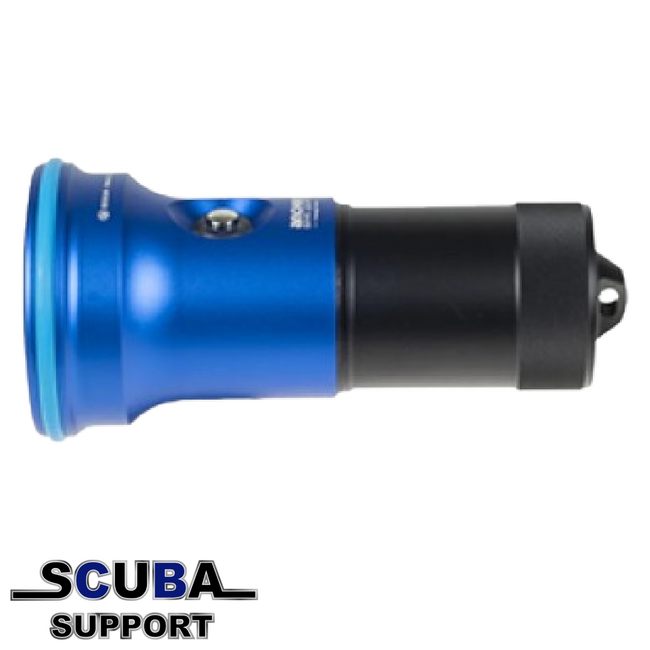

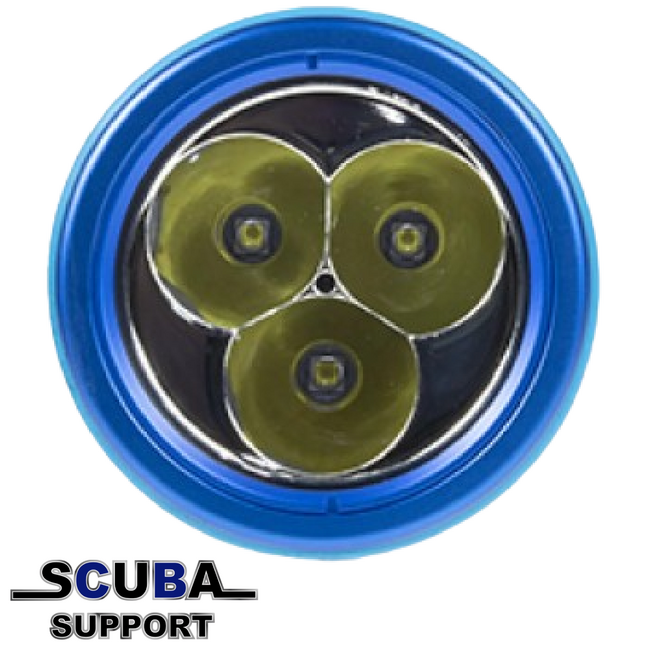

DOOLIN Series 4K Spot - Handheld
The DOOLIN 4K Spot is a very intense 8 degree spot asked for by cave divers and divers diving in very poor visibility. Named after a famous cave diving site in Ireland, the DOOLIN is an excellent addition to our range of modular dive lights.
The DOOLIN has all the usual Anchor Dive Lights features including a modular head, runtime as handheld of 90 minutes on full power, and different intensity settings.
The modular head works with existing handhelds, umbilical cables and canisters. Divers can choose from intensity setting of 100%, 50%, 25% and 10%. Where the 50% intensity will give an astonishing runtime of 6 hours, requested by cave divers.
An added feature is the sealed light head, should the battery leak or water come in, the head will not be damaged.
DOOLIN has been tested over 150m, and has a CE approval to 100m. It also works with all existing canisters, Goodman handle ERRIGAL and ball adapters.
The Doolin got its name from the cave system at Doolin Point Co Donegal, ireland. Not many know that Ireland has some of the best cavern diving sites in European temper waters. The Green Holes of Doolin in County Clare combine good visibility with spacious breathtaking underwater tunnels.
· The perfect spotlight for cave divers
· Modular 8 degree light head
· Water sealed head.
· 150m chamber tested / 100m CE rated.
· Expected burn time of 1.5 hours on full power/ 6 hours on 25% intensity / 3 hours on full power using our cave canister
· Five output intensity levels, 100%, 75%, 50%, 25% and 10% enables very long durations over multiple dives or extended durations when battery is low.
· The light comes with a combination of strobe and SOS modes which is a safety feature.
· The light has a replaceable and rechargeable 32650 lithium battery sourced direct from Panasonic.
· Power indicator
· Led battery indicator:
· Blue – over 60% available
· Green – 30-60% available
· Red – 10-30% available
· Flashing Red – less than 10%.
· When the battery level gets very low the torch shuts down saving the battery memory. This battery protection makes sure that you can have many more dives without needing to replace the battery.
· The light has an overheat protection. It turns off automatically should the light head get too hot. This saves burning out the LED and electronics.
· Double and Triple O-Ring design ensures water tightness even at extreme depths.
· The aviation grade anodized aluminium gives strength and longevity.
Technical specifications :
· Sealed head
· Head protection ring
· Battery Power Display
· Low Electric Alarm
· Low Electric Protection
· Temperature Protection
· Battery anti-reverse Protection
Light modes & Intensities
· The DOOLIN has 3 light modes:
· The DOOLIN has 5 light intensities:
· Lumens: 4000 Lumens
· Beam Angle: 8 degree spot
· LUX: 50,000 at 100%
· Colour temperatuur: ~6500K
· Bulb Technology: CREE LED
· Battery cell: 32650 Li-Ion
· Voltage: 3.7V
· Capacity: 8,600MAh
· Rechargable: Yes
· Protection: Yes
· Charge time: 4.5 hours
· Burn Time:
· at 100%: 90 minutes
· at 75%: 125 minutes
· at 50%: 3 hours
· at 25%: 6 hours
· at 10%: 15 hours
· Aviation grade aluminium
Weight & measures
· Length: […]
· Diameter head: […]
· Total in water weight: […]
· Light Head: […]
· 32650 Battery: […]
· Total weight above water: […]
· Charger and Cable: ~50g
· Packaging: ~100g
· Tested: 100 meters
· Maximum inwater depth test: 150 meters
What’s in the box?
· Lighthead DOOLIN
· Front ball + Allen screw
· 2 spare O-rings large
· O-ring remover
· Charger pod
· USB cable
· Wrist lanyard
· Allan Key
· Soft case + inlay
· Tank sticker
· Dimensions: Box 20cm x 15cm x 10cm
The handheld version includes the light head, body, battery, charger and soft-case.
Extra battery (optional)
Diving more than 2 dives per day or diving on a liveaboard? Add that extra spare battery! Each battery takes 6 hours to charge from empty.
BATTERY FOR 3K / 5K / 189 – 2019
Replacement or extra Li-Ion battery 32650 for handheld LAURENTIC, CRUIT and AUDACIOUS (2019 version). This battery has a built in protection against reversed polarity
Charge your battery (included)
FINN - Charging Pod with USB Cable
Charging dock for the 32650 battery of the Laurentic, Cruit and Audacious. Input 5V DC and 5V micro-USB. The charger has a LED light indication for the charging status. With this charger you can charge your battery at home (230V) as well as in your car or boat (12V).
Hold Your Light – ERRIGAL Goodman Handle (recommended)
Did you ever hold something which you didn’t want to let go? We think the same about our dive lights, never let go. A common way of holding our dive torches is with our modular ERRIGAL Goodman handle where you can still have use of both hands.
( €79.00 )
Hold Your Light – BURREN Goodman Glove (popular)
A comfortable way of holding our dive torches where you can still have use of both hands.
The light attaches on top of your hand with this glove.
BURREN - Goodman Glove
The BURREN modular goodman glove can be used with our LAURENTIC and CRUIT handheld and umbilical lights. The glove goes over an existing glove or bare hand.
( €25.00 )
