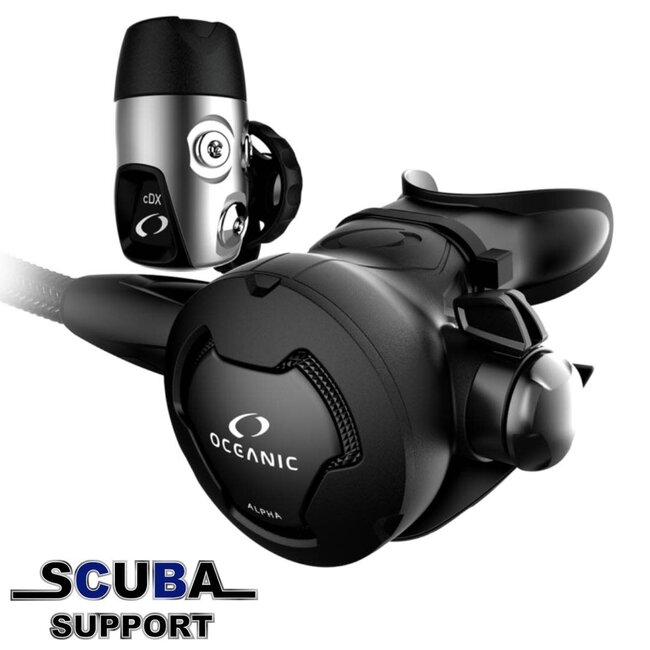

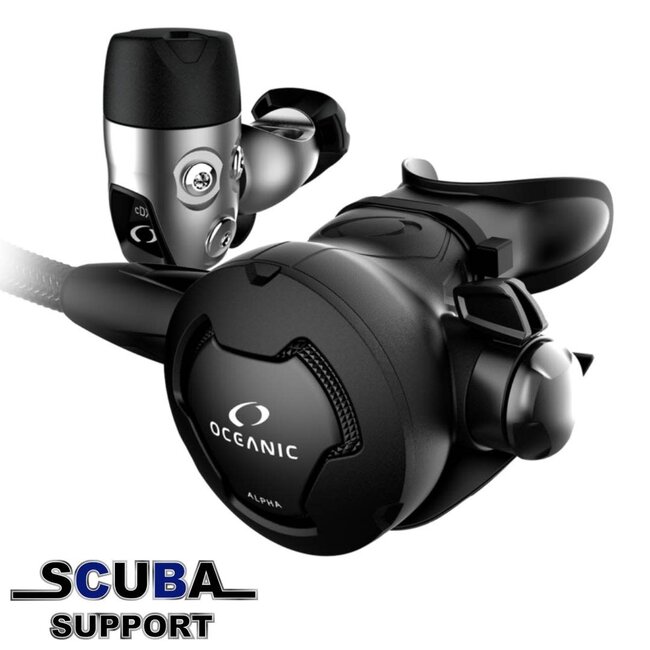

Alpha 10 with CDX – Powerful Performance in a Compact Design

The Alpha 10 with CDX combines an advanced air delivery system with a tough and compact build. Its pneumatically balanced second stage drastically reduces breathing resistance, providing exceptionally smooth inhalation.

A regulator offering excellent value without compromising on performance.

BUILT TO LAST

The lightweight and compact Alpha 10 is designed for ease of use, simple servicing, and—like all our gear—built to last. Includes a lifetime warranty and free parts for life.

BREATHE EASY

Equipped with a pneumatically balanced second stage for smooth, effortless breathing. It responds naturally to inhalation and reduces resistance.

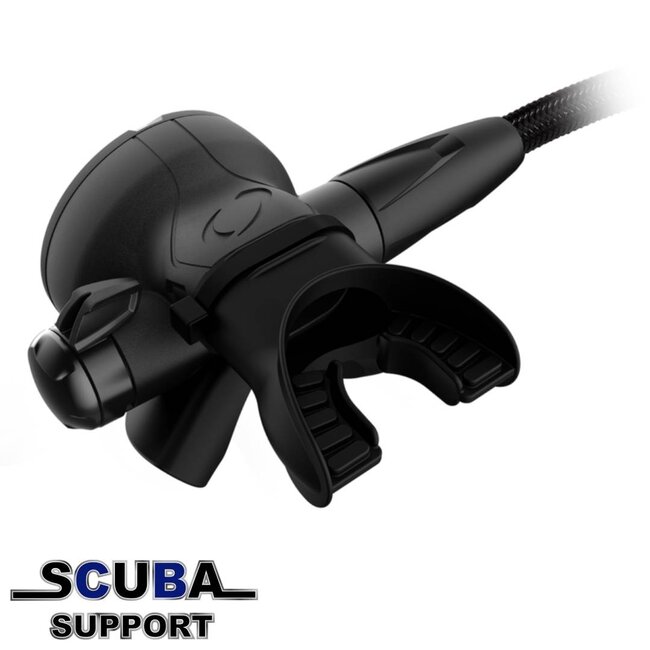

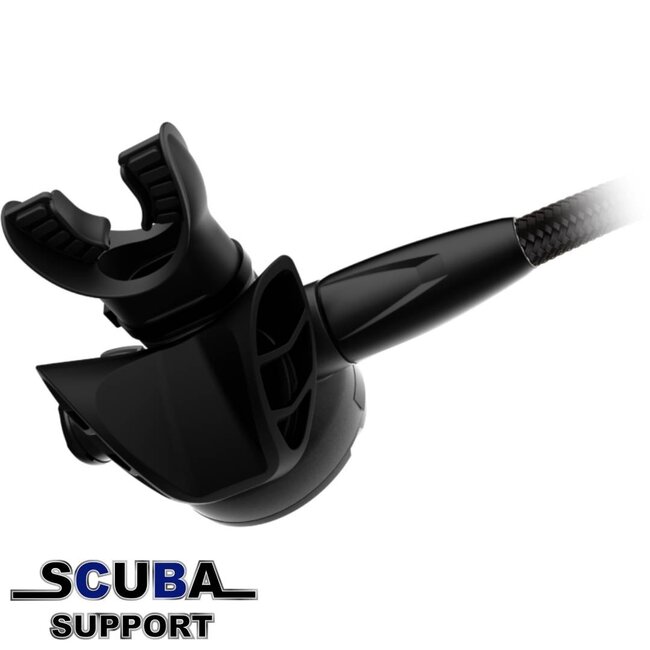

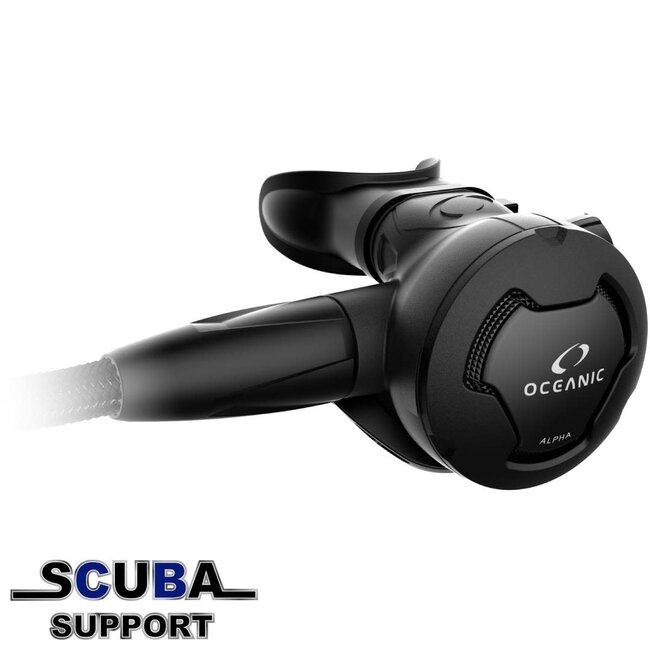

SPECS – SECOND STAGE ALPHA 10

• Valve Type: Pneumatically balanced demand valve

• Mouthpiece: Orthodontic with bite tabs

• Nitrox Compatibility: Up to 40%

• Swivel Adapter: Optional

• Dimensions (Front Profile): 2.66 inch (6.76 cm) diameter

• Warranty: Lifetime & Free Parts for Life

• Service Interval: Every 2 years (required)

SPECS – FIRST STAGE CDX & SPX

Available in DIN & Yoke (INT)

• Valve Type:

  • CDX: Over-balanced diaphragm

  • SPX: Piston

• Primary Material: Precision-machined marine brass, triple chrome-plated

• Angled Ports for ideal hose routing

• Pressure Ports:

  • LP: 4 low-pressure

  • HP: 2 high-pressure

• Work of Breathing: 1.23 Joules

• Nitrox Compatibility: Up to 40%

• Environmental Sealing:

  • CDX: Yes

  • SPX: No

• Warranty: Lifetime & Free Parts for Life

• Service Interval: Every 2 years (required)
